Command Line Reference

Globalyzer XSL Support

You can use XSL transformation ( -xslfile, --xsl-file ) to generate a report in output format (html, text, etc) defined in your XSL transformation file. XSL transformation uses XML format as input to the transformation. See xsl/globalyzer_scan_history.xsd XML schema for details. See xsl directory .xsl files for examples of XSL transformation and for available .xsl files.

Available XSL Files

XSL Description
scan_diff_simple.xsl Creates an HTML page with the issue count differences between two scans of the specified Globalyzer Project and Scan
scan_diff_text.xsl Creates s plain text file with the issue count differences between two scans of the specified Globalyzer Project and Scan
scan_history_simple.xsl Creates an HTML page with the Scan History table for the specified Globalyzer Project and Scan
scan_history_text.xsl Creates a plain text file with the Scan History for the specified Globalyzer Project and Scan
scan_results.xsl Creates multiple HTML pages and an index HTML page containing the summary and detailed Scan Results for the specified Globalyzer Project and Scan
scan_results_simple.xsl Creates a single HTML page containing the summary and detailed Scan Results for the specified Globalyzer Project and Scan
scan_results_text.xsl Creates a single plain text page containing the detailed Scan Results for the specified Globalyzer Project and Scan
scan_results_summary.xsl Creates a single HTML page containing the Scan Results Summary for the specified Globalyzer Project and Scan

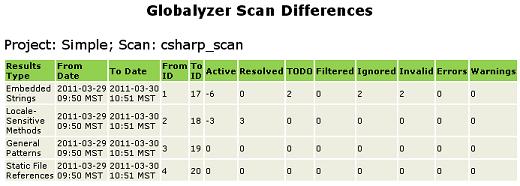

scan_diff_simple.xsl

The following shows an example of using this XSL file in the Command Line Client. In this case, you need to set --report-file to the filename. Do not specify a --result-type if you want the scan differences for all Scan Result types.

java -jar globalyzer-cli.jar --scan-diff –-project-name Simple
--scan-name csharp_scan --from-date 2011-03-29
--report-file scan_diff_simple.html
--xsl-file xsl/scan_diff_simple.xsl

scan_diff_text.xsl

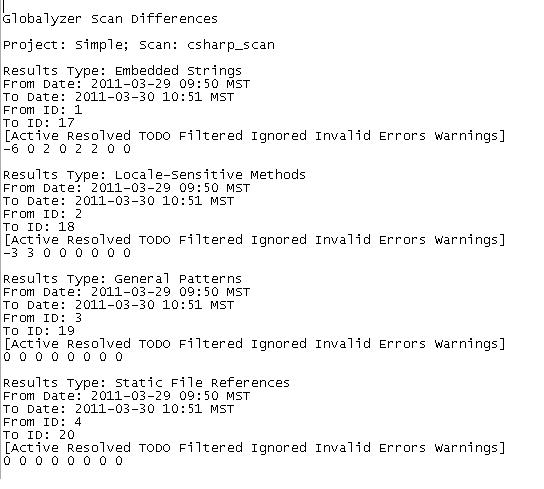

The following shows an example of using this XSL file in the Command Line Client. In this case, you need to set --report-file to the plain text filename. Do not specify a --result-type if you want the scan differences for all Scan Result types.

java -jar globalyzer-cli.jar --scan-diff –-project-name Simple
--scan-name csharp_scan --from-date 2011-03-29
--report-file scan_diff_text.txt
--xsl-file xsl/scan_diff_text.xsl

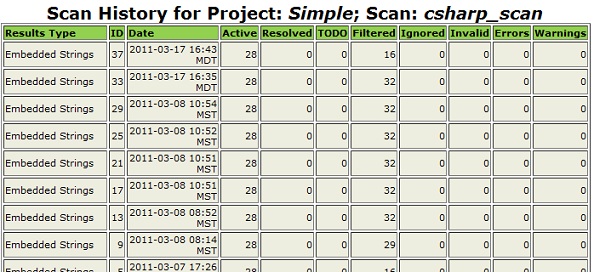

scan_history_simple.xsl

The following shows an example of using this XSL file in the Command Line Client. In this case, you need to set --report-file to the HTML filename. Do not specify a --result-type if you want the history for all Scan Result types.

java -jar globalyzer-cli.jar --scan-history –-project-name Simple
--scan-name csharp_scan --report-file scan_history_simple.html
–-xsl-file xsl/scan_history_simple.xsl

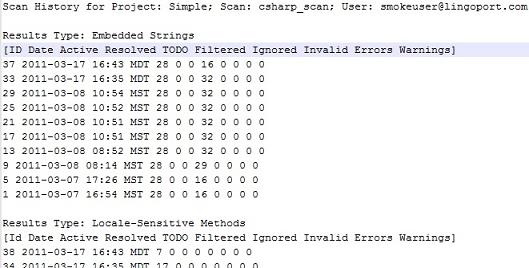

scan_history_text.xsl

The following shows an example of using this XSL file in the Command Line Client. In this case, you need to set --report-file to the plain text filename. Do not specify a --result-type if you want the history for all Scan Result types.

java -jar globalyzer-cli.jar --scan-history –-project-name Simple
--scan-name csharp_scan --report-file scan_history_text.txt
–-xsl-file xsl/scan_history_text.xsl

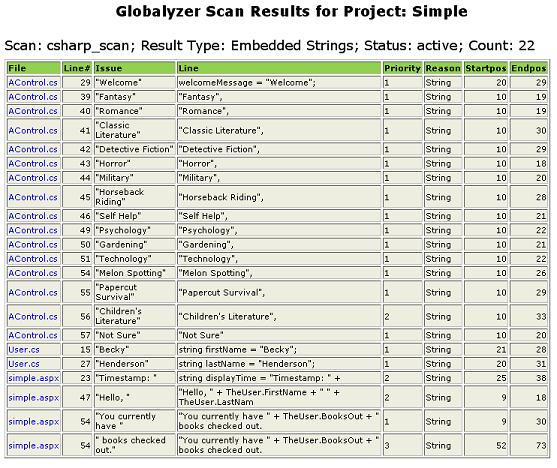

scan_results.xsl

The following shows an example of using this XSL file in the Command Line Client. In this case, you need to set --report-dir to the path where you want the multiple HTML files to be created. The generated file for Active Embedded Strings is shown below.

java -jar globalyzer-cli.jar --run-report –-project-name Simple
--scan-name csharp_scan --report-dir scan_results
--report-type xsl –-xsl-file xsl/scan_results.xsl

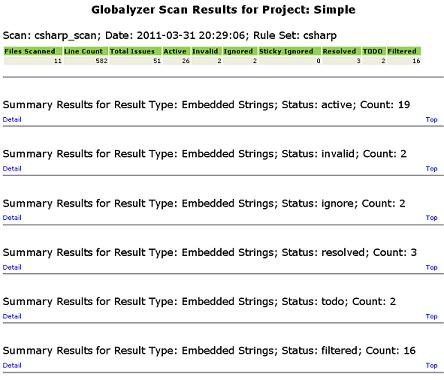

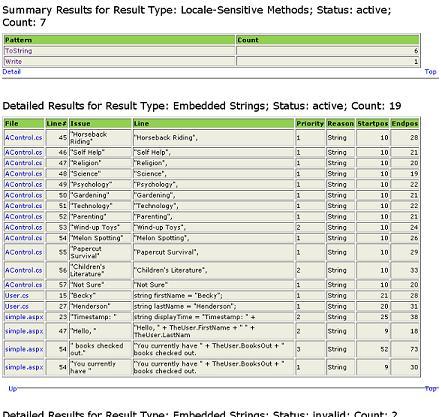

scan_results_simple.xsl

The following shows an example of using this XSL file in the Command Line Client. In this case, you need to set --report-file to the HTML file to be created.

java -jar globalyzer-cli.jar --run-report –-project-name Simple
--scan-name csharp_scan --report-file scan_results_simple.html
--report-type xsl –-xsl-file xsl/scan_results_simple.xsl

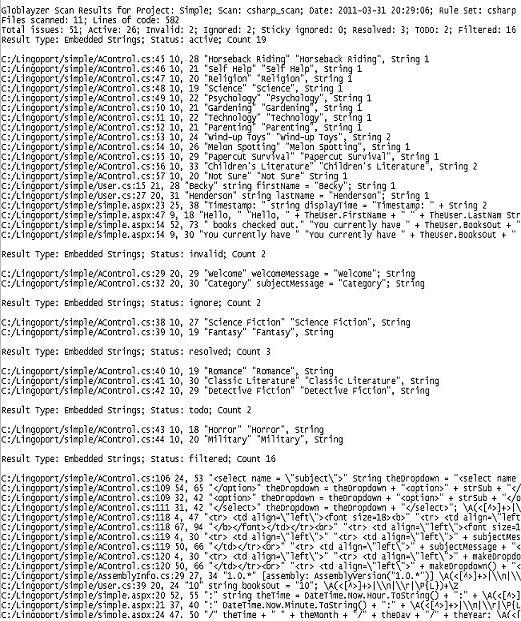

scan_results_text.xsl

The following shows an example of using this XSL file in the Command Line Client. In this case, you need to set --report-file to the plain text file to be created.

java -jar globalyzer-cli.jar --run-report –-project-name Simple
--scan-name csharp_scan --report-file scan_results_text.txt
--report-type xsl –-xsl-file xsl/scan_results_text.xsl

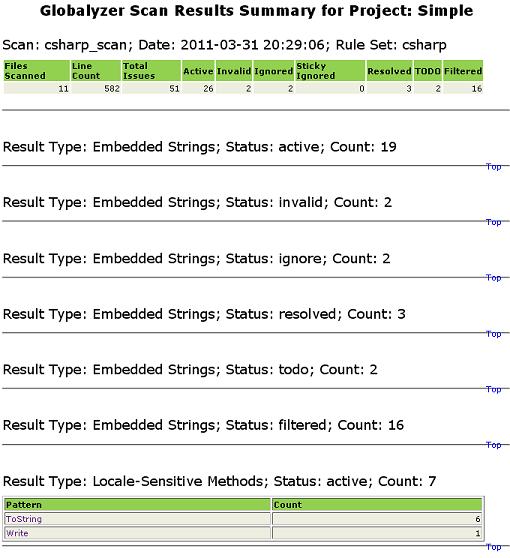

scan_results_summary.xsl

The following shows an example of using this XSL file in the Command Line Client. In this case, you need to set --report-file to the HTML file to be created.

java -jar globalyzer-cli.jar --run-report –-project-name Simple
--scan-name csharp_scan --report-file scan_results_summary.html
--report-type xsl –-xsl-file xsl/scan_results_summary.xsl
