Using Globalyzer Lite from an IDE

Overview

Globalyzer Lite can be run as an external tool from Integrated Development Environments (IDEs) such as Visual Studio, Eclipse, and IntelliJ IDEA. This provides a convenient way to scan source code for i18n issues within a development environment.

Running Globalyzer Lite from within an IDE requires some initial setup. This tutorial covers setting up Globalyzer Lite as an external tool from:

If you are using an IDE other than those listed, you may still be able to use Globalyzer Lite. The general requirements for an IDE to support Globalyzer Lite are:

  1. The IDE must be able to create external tools.
  2. The IDE must be able to provide these tools with some basic project information.
  3. Optionally, it is desirable for the IDE to automatically jump to files linked from within an output console.

For basic project information, the IDE must provide the project's location. Preferably, it should also specify which file/directory is open or selected in the workspace. In Visual Studio, Eclipse, and IntelliJ, this information is provided as variables/macros within the external tool setup interface. The instructions for setup within each IDE are similar, so you may use any of them as a guide for setting up Globalyzer Lite within a different, unlisted IDE.

Globalyzer Lite requires using a Project Definition File. Running Globalyzer Lite can be done several ways and the Project Definition File and system configuration changes slightly with each method.

  1. Locally. If Globalyzer Lite is run locally, the rulesets and the Globalyzer.license file must also reside on the system.
  2. Remotely with the Globalyzer Server login in the Project Definition File. The Project Definition File must contain the username, password and server information to login into the Globalyzer Server and retrieve rulesets.
  3. Remotely, with the Globalyzer Server login information in a .globalyzerrc file. This is used when the Project Definition File is shared. Each user's individual Globalyzer Server information is stored in a file on their system.
For more details and examples about Project Definition Files for use with an IDE, see project definition file examples. Place the project definition file in the lingoport directory in source directory of your project.



Visual Studio

Any recent version of Visual Studio can be used. For a demonstration of using Globalyzer Lite in Visual Studio, see this video .

Prerequisites

  1. Before setting up Globalyzer Lite, make sure that you have Java installed. The default Java install location is C:\Program Files\Java. Browse there and look for an installed jre or jdk. You can also do java -version from a command prompt to verify that Java is installed. And to check its version. Java 11 and above are supported.
    > java -version
    openjdk version "11.0.20" 2023-07-18
    OpenJDK Runtime Environment (build 11.0.20+8)
    OpenJDK 64-Bit Server VM (build 11.0.20+8, mixed mode)
    > C:\Program Files\java\jre11.0.20\bin>
    > dir java.exe

  2. Extract the Globalyzer Lite compressed file. For the purpose of convention, we recommend placing it under C:\Lingoport\ folder on Windows. The extraction will create a globalyzer-lite-x.y.z folder. Where x.y.z is the current version.

  3. Run the installation script from the command line. Open a command prompt. The following commands assume that the package was extracted into the default directory.

  4. > cd C:\Lingoport\globalyzer-lite-x.y.z\
    > install-lite.bat


  5. Create a Globalyzer Project Definition XML file or use one that has been given to you. For this tutorial, the file's name will be assumed to be LiteProjectDefinition.xml. For instructions on how to create one and more details about the Project Definition file, see creating a project definition file. For more details and examples about Project Definition Files for use with an IDE, see project definition file examples. Place the project definition file in the lingoport directory in source directory of your project.

  6. Make non-project files viewable so that you will be able to see Globalyzer Lite's reports after they are generated.
    • In Visual Studio, in the Solution Explorer, select the "Show All Files" button.

After scanning your code with Globalyzer Lite, the reports will be placed in a specified output directory, as defined by the --report-path option. For this tutorial, it will be called "globalyzer-lite-reports". You do not need to create this directory, it will be automatically generated when Globalyzer Lite successfully performs a scan.

After generating some initial reports, you may make the generated reports part of your solution. Report names are based off of a combination of the name of the scan they represent and their report type. Note that if a scan is added to your project definition file (or renamed within it), this will cause a new, differently named, report to be generated. The new report may not be included in your solution, and thus will only appear if you list non-solution files.

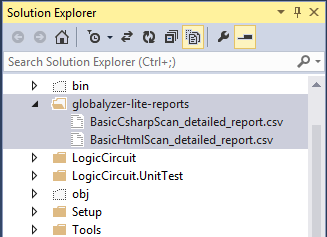

Lite-relevant files in Visual Studio

Setup Visual Studio

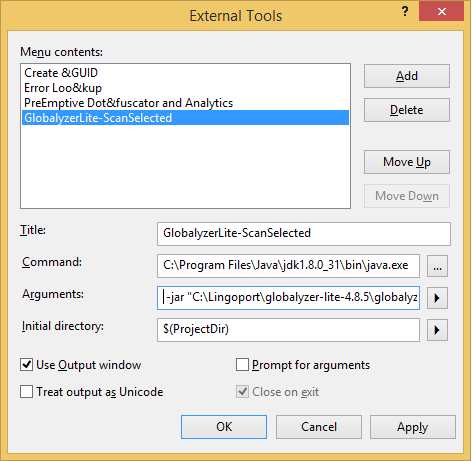

To begin, open the External Tool Configuration wizard (Tools -> External Tools...). Click the Add button to configure a new external tool.

This tool is configured to scan the topmost file or directory currently selected in the Solution Explorer. This tool will display the scan results in the output console.

Task for scanning the selected file or directory with Globalyzer Lite in Visual Studio

  • Title: GlobalyzerLite-ScanSelected
  • Command: C:\Program Files\Java\Your (jre|jdk) Version Here\bin\java.exe
  • Arguments: -jar "C:\Lingoport\globalyzer-lite-x.y.z\globalyzer-lite.jar" -f lingoport/LiteProjectDefinition.xml --project-path "$(SolutionDir)" --scan-items "$(ItemPath)" --console-output visual-studio
    • "-f": Name of the Project Definition XML file. It is recommended that the Project Definition file be placed into the project source code base directory.

    • "--project-path": Specifies the path to this project. Optional, but useful if a project definition file is being shared between users. Users may store the project in different locations within their system.

    • "--scan-items": Overrides the default settings for which files and directories to scan (as defined in the project definition file).
      • Affects all scans.
    • "$(ItemPath)": The absolute path to the resource selected in the Solution Explorer.
      • If multiple resources are selected, returns the path to only the first one.
      • Quotes are recommended, as the item path may contain spaces. Any content after a space would otherwise be interpreted as an additional argument.
    • "--console-output": Print scan report output to console with specified format.
      • "visual-studio": Format report output for visual studio. This allows the user to click on a candidate issue in the output and jump to its location within a file.
      • Note: The generated report is parsed to create this output. Currently, only the report styles ScanDetailedXML and ScanDetailedCSV are supported. You may set the report style in the project definition file.
  • Initial Directory: $(ProjectDir)
  • Use Output window: Recommended.

Running Globalyzer Lite

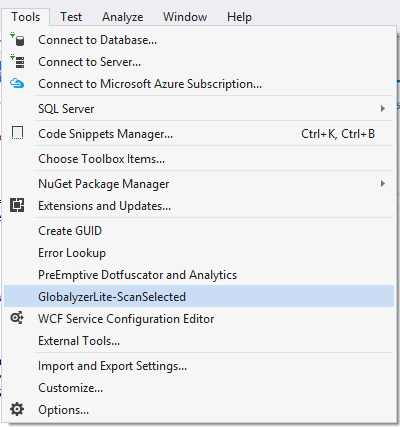

To run Globalyzer Lite, go to the Tools menu. The Globalyzer Lite-based external tool which you just configured will be present. Click on the tool to run it. Be sure that you have finished configuring a project definition file.

Warning: If you have not selected a file or directory in the Solution Explorer, the variables used in the external tools may be blank. This may cause unexpected behavior (e.g. no scan items given due to blank $(ItemPath)).

Warning: Non-project must be viewable in Solution Explorer or you will not be able to see the report output directory when it is created.

Running Globalyzer Lite in Visual Studio


Here is some output after scanning a file:

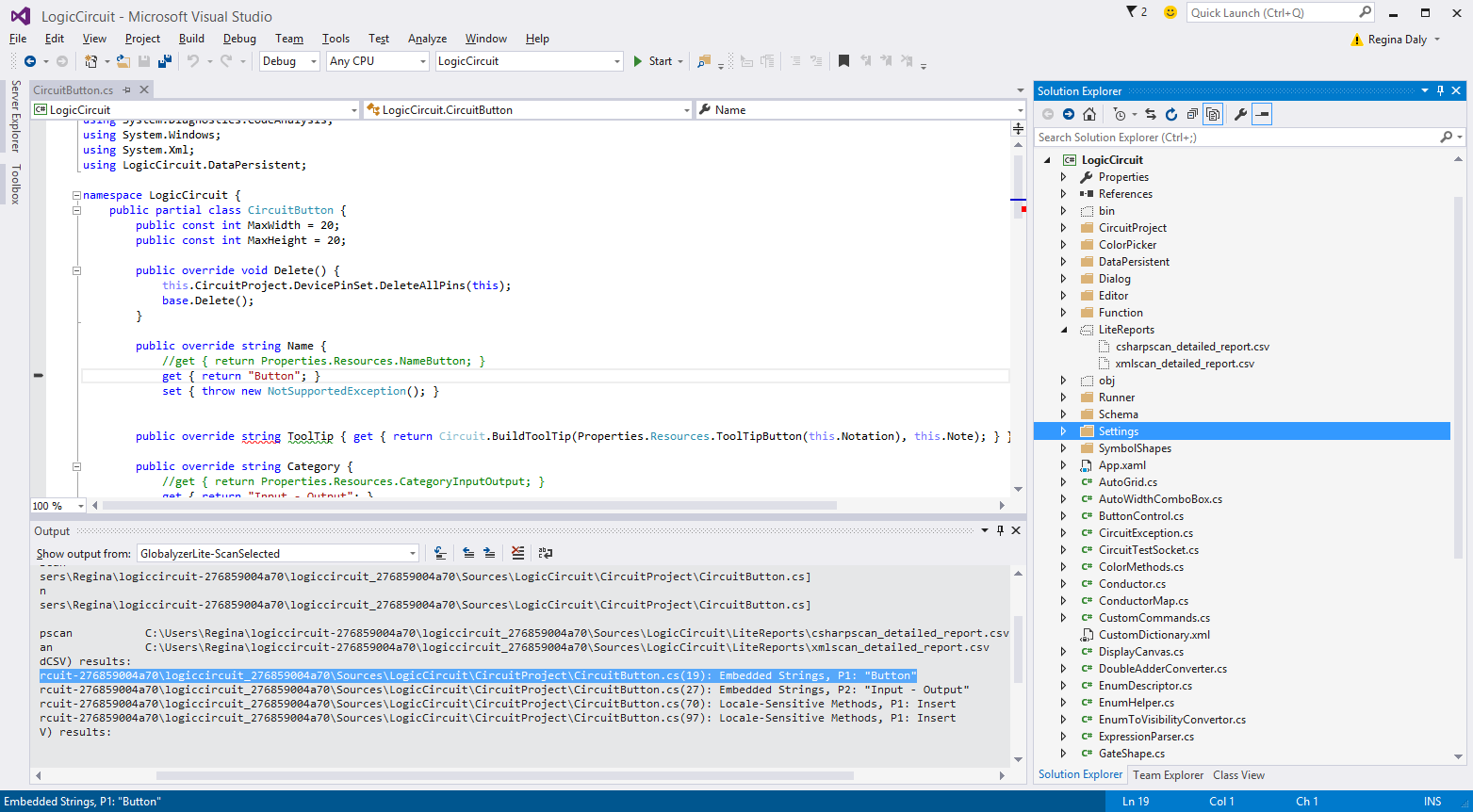

Visual Studio Workspace With Lite Integrated

In this example, the file "CircuitButton.cs" was scanned using the GlobalyzerLite-ScanSelected task. The workspace is arranged so that the file scanned, the scan output, and the scan results (as recorded in csharpscan_detailed_report.csv) are all visible.

Note that the first issue found is the embedded string "Button" located on line 19 of the file. To jump directly from an issue in a report to its location in the source code, double-click on the line in the console output.

Note also that "csharpscan_detailed_report.csv" and "xmlscan_detailed_report.csv" are visible in the Solution Explorer. As mentioned previously, these will not automatically be part of the current solution. You will either need to set them as such (and add any additional scan reports as they are created), or enable viewing of non-solution items.



Globalyzer Lite Task for VSCode

Prerequisites

  1. Before setting up Globalyzer Lite, make sure that you have Java installed. The default Java install location is C:\Program Files\Java. Browse there and look for an installed jre or jdk. You can also do java -version from a command prompt to verify that Java is installed. And to check its version. Java 11 and above are supported.
    > java -version
    openjdk version "11.0.20" 2023-07-18
    OpenJDK Runtime Environment (build 11.0.20+8)
    OpenJDK 64-Bit Server VM (build 11.0.20+8, mixed mode)
    > C:\Program Files\java\jre11.0.20\bin>
    > dir java.exe

  2. Extract the Globalyzer Lite compressed file. For the purpose of convention, we recommend placing it under C:\Lingoport\ folder on Windows. The extraction will create a globalyzer-lite-x.y.z folder. Where x.y.z is the current version.

  3. Run the installation script from the command line. Open a command prompt. The following commands assume that the package was extracted into the default directory.

  4. > cd C:\Lingoport\globalyzer-lite-x.y.z\
    > install-lite.bat


  5. Create a Globalyzer Project Definition XML file or use one that has been given to you. For this tutorial, the file's name will be assumed to be LiteProjectDefinition.xml. For instructions on how to create one and more details about the Project Definition file, see creating a project definition file. For more details and examples about Project Definition Files for use with an IDE, see project definition file examples. Place the project definition file in the lingoport directory in source directory of your project.

Configure Plugin

  1. Open your project folder in VSCode

  2. Select Terminal->Configure Tasks from the top menu bar

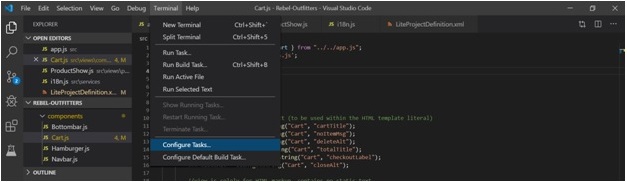

  3. VSCode Configure Tasks

  4. Select Create tasks.json file from template from the popup option list

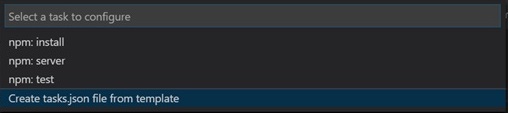

  5. VSCode Create Tasks

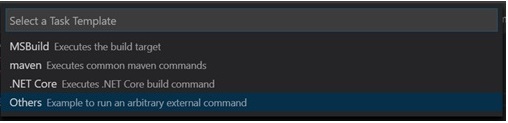

  6. Select Others from the Task Template list
  7. VSCode Others

  8. Change the default template for the generated tasks.json file to match the following

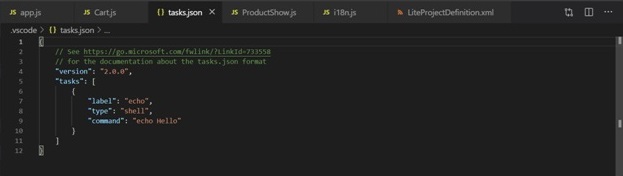

  9. VSCode Template

    {

       "version": "2.0.0",
       "tasks": [
           {
               "label": "GlobalyzerLite",
               "type": "shell",
               "command": "java",
               "args": [
                   {
                       "value": "-jar",
                           "quoting": "weak"
                   },
                   {
                       "value": "/Applications/Lingoport/globalyzer-lite-6.8.0_4.0/globalyzer-lite.jar",
                           "quoting": "strong"
                   },
                   {
                       "value": "-f",
                           "quoting": "weak"
                   },
                   {
                       "value": "${workspaceFolder}/lingoport/LiteProjectDefinition.xml",
                           "quoting": "strong"
                   },
                   {
                       "value": "--project-path",
                           "quoting": "weak"
                   },
                   {
                       "value": "${workspaceFolder}",
                           "quoting": "strong"
                   },
                   {
                       "value": "--report-path",
                           "quoting": "weak"
                   },
                   {
                       "value": "${workspaceFolder}/Lingoport",
                           "quoting": "strong"
                   },
                   {
                       "value": "--scan-items",
                           "quoting": "weak"
                   },
                   {
                       "value": "${file}",
                           "quoting": "strong"
                   },
                   {
                       "value": "--console-output",
                           "quoting": "weak"
                   },
                   {
                       "value": "visual-studio",
                           "quoting": "weak"
                   }

               ],
               "presentation": {
                   "showReuseMessage": false,
                   "clear": true,
                   "revealProblems": "onProblem"
               },
               "problemMatcher": {
                   "fileLocation": ["absolute"],
                   "severity": "warning",
                   "owner": "globalyzer",
                   "pattern": {
                       "regexp": "^(.*)\\((\\d*)\\):\\s+(.*),\\s+(P\\d+):\\s+(.*)",
                       "file": 1,
                       "line": 2,
                       "message": 3,
                       "severity": 4,
                       "code": 5
                   }
               }
           }
       ]
    }

  • label is the name of the task - this can be changed to whatever makes the most sense
  • type specifies that the command should be run in a shell - required
  • command is the command to execute in the shell - required
  • args specifies the arguments to be passed to the command at execution
  • value contains the actual arguments
    • -jar specifies the jar to execute
      • Replace path/to/globalyzer-lite.jar with the absolute path to your globalyzer-lite.jar
      • E.g. C:/Lingoport/globalyzer-lite-x.y.z/globalyzer-lite.jar
    • -f is the name of the Project Definition file
      • Replace the path/to/LiteProjectDefinition.xml with the workspace relative path of your Project Definition file
      • E.g. ${workspaceFolder}/lingoport/LiteProjectDefinition.xml
    • --project-path is the path of this project
      • Leave this as the ${workspaceFolder} VSCode environment variable
    • --scan-items Overrides the default settings for which files and directories to scan
      • Use ${file} to scan only the currently selected file in VSCode
    • --console-output prints scan report output to console with specified format
      • Leave as "visual-studio" - format report output for visual studio. This allows the user to click on a candidate issue in the output and jump to its location within a file.
  • quoting specifies how to handle quoting within the args - 'strong' is used for arguments that may contain spaces.
  • presentation configures how the workspace should handle displaying the task as it executes
  • problemMatcher uses a regular expression to extract the problems found in the scan and display them in the problems panel

To Execute a Scan on the Current Opened File

  1. Select Terminal->Run Task and choose the GlobalyzerLite task from the list in the modal window

  2. Scan will execute in a VSCode terminal panel and display problems in the problems panel if any are found

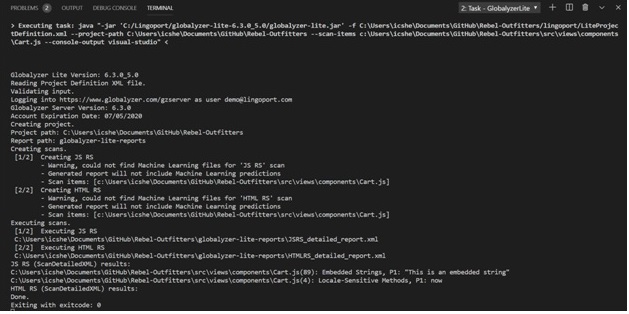

  3. VSCode Output

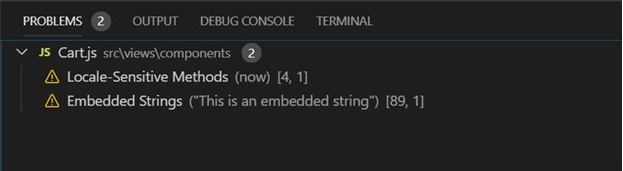

    VSCode Issues


Eclipse

Version 4.4 or higher for Windows, OSX and Linux is recommended. For a demonstration of using Globalyzer Lite in Eclipse, see this video .

Prerequisites

Linux

  1. Before setting up Globalyzer Lite in Eclipse, be sure that you have Java installed and determine its location. Java 1.7 and above are supported.

  2. > java -version
    > which java


  3. Extract the Globalyzer Lite compressed file. We recommend extracting from the home directory. The extraction will create a globalyzer-lite-x.y.z directory. Where x.y.z is the version you are using.

  4. > cd <home-directory>
    > unzip globalyzer-lite-x.y.z.zip


  5. Run the installation script. This only needs to be run at installation and not again. The following commands assume that the package was extracted into the default directory.

  6. > cd <home-directory>/globalyzer-lite-x.y.z
    > ./lite-setup.sh


  7. By default, console clickability in Eclipse is limited to Java, and the linked files must have been built in the workspace. Globalyzer Lite ships with an Eclipse plugin, ClickableConsole, which will enable links to all files from the console. Installing this plugin is highly recommended.

    • To install the plugin, copy "EclipseClickableConsolePlugin.jar" to:

      <Eclipse install dir>/dropins/plugins

      creating the plugins directory if necessary. The plugin should be loaded the next time Eclipse is (re)started.


      > mkdir <Eclipse installation>/dropins/plugins
      > cp <home-directory>/globalyzer-lite-6.8.0/EclipseClickableConsolePlugin.jar <Eclipse installation>/dropins/plugins/

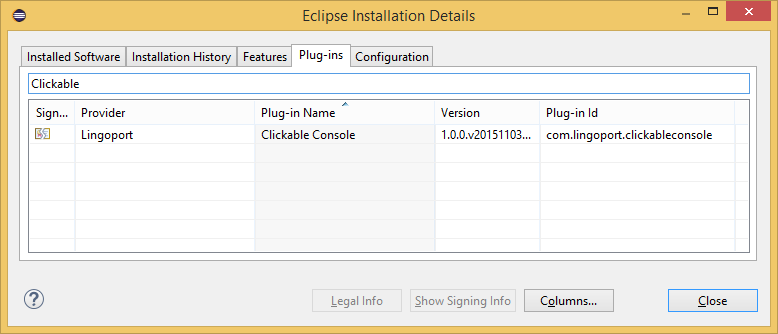

    • Restart Eclipse and verify that the plug-in is recognized by Eclipse by selecting Help -> Installation Details and selecting the Plug-ins tab. Search for "Clickable".
    • Lite-relevant files in Eclipse Plugins


  8. Create a Globalyzer Project Definition XML file or use one that has been given to you. For this tutorial, the file's name will be assumed to be LiteProjectDefinition.xml. For instructions on how to create one and more details about the Project Definition file, see creating a project definition file. For more details and examples about Project Definition Files for use with an IDE, see project definition file examples. Place the project definition file in the lingoport directory in source directory of your project.

OSX

  1. Before setting up Globalyzer Lite in Eclipse, be sure that you have Java installed and determine its location. Java 1.7 and above are supported.

  2. > java -version
    > which java


  3. Extract the Globalyzer Lite compressed file. We recommend extracting into /Applications/Lingoport, creating the directory if it does not already exist. The extraction will create a globalyzer-lite-x.y.z directory. Where x.y.z is the version you are using.

  4. > sudo mkdir -p /Applications/Lingoport
    > sudo chown '0755' /Applications/Lingoport
    > unzip -d /Applications/Lingoport/ globalyzer-lite-x.y.z.zip


  5. Run the installation script. This only needs to be run at installation and not again. The following commands assume that the package was extracted into the default directory.

  6. > cd /Applications/Lingoport/globalyzer-lite-x.y.z
    > ./lite-setup.sh


  7. By default, console clickability in Eclipse is limited to Java, and the linked files must have been built in the workspace. Globalyzer Lite ships with an Eclipse plugin, ClickableConsole, which will enable links to all files from the console. Installing this plugin is highly recommended.

    • To install the plugin, copy "EclipseClickableConsolePlugin.jar" to:

      <Eclipse install dir>/dropins/plugins

      creating the plugins directory if necessary. The plugin should be loaded the next time Eclipse is (re)started.


      > mkdir <Eclipse installation>/dropins/plugins
      > cp /Applications/Lingoport/globalyzer-lite-6.8.0_x.y/EclipseClickableConsolePlugin.jar <Eclipse installation>/dropins/plugins/

    • Restart Eclipse and verify that the plug-in is recognized by Eclipse by selecting Help -> Installation Details and selecting the Plug-ins tab. Search for "Clickable".
    • Lite-relevant files in Eclipse Plugins


  8. Create a Globalyzer Project Definition XML file or use one that has been given to you. For this tutorial, the file's name will be assumed to be LiteProjectDefinition.xml. For instructions on how to create one and more details about the Project Definition file, see creating a project definition file. For more details and examples about Project Definition Files for use with an IDE, see project definition file examples. Place the project definition file in the lingoport directory in source directory of your project.

Windows

  1. Before setting up Globalyzer Lite in Eclipse, make sure that you have Java installed. The default Java install location is C:\Program Files\Java. Browse there and look for an installed jre or jdk. Java 1.7 and above are supported. For this example, jdk1.7.0_40 was used. You can also do java -version from a command prompt.

  2. Extract the Globalyzer Lite compressed file. For the purpose of convention, we recommend placing it under C:\Lingoport\. The compressed file will create a globalyzer-lite-x.y.z folder. Where x.y.z is the version being used.

  3. Run the installation script from the command line. Open a command prompt. The following commands assume that the package was extracted into the default directory.

  4. > cd C:\Lingoport\globalyzer-lite-x.y.z\
    > install-lite.bat


  5. By default, console clickability in Eclipse is limited to Java files, and the linked files must have been built in the workspace. Globalyzer Lite ships with an Eclipse plugin, ClickableConsole, which will enable links to all files from the console. Installing this plugin is highly recommended.

    • To install the plugin, copy "EclipseClickableConsolePlugin.jar" to:

      <Eclipse install dir>/dropins/plugins

      creating the plugins directory if necessary. The plugin should be loaded the next time Eclipse is (re)started.


      > mkdir <Eclipse installation>\dropins\plugins
      > copy <home-directory>\globalyzer-lite-x.y.z\EclipseClickableConsolePlugin.jar <Eclipse installation>\dropins\plugins\

    • Restart Eclipse and verify that the plug-in is recognized by Eclipse by selecting Help -> About -> Installation Details and selecting the Plug-ins tab. Search for "Clickable".
    • Lite-relevant files in Eclipse
  6. Create a Globalyzer Project Definition XML file or use one that has been given to you. For this tutorial, the file's name will be assumed to be LiteProjectDefinition.xml. For instructions on how to create one and more details about the Project Definition file, see creating a project definition file. For more details and examples about Project Definition Files for use with an IDE, see project definition file examples. Place the project definition file in the lingoport directory in source directory of your project.

Setup

Globalyzer Lite will be run as an external tool. The External Tool Configuration wizard includes Eclipse set variables, such as ${project_loc}, ${container_loc} and ${selected_resource_loc}, which can be used to automatically specify files or directories for Globalyzer Lite to scan.

To use Globalyzer Lite, an external tool must be created. The tool will scan depending on what has been selected in the Package Explorer. If the project is selected, the entire project will be scanned. If a subdirectory is selected, all the directories and files under that folder will be scanned. If a file is selected, only that file will be scanned. This scan will execute the contents of your project definition file without making any modifications. You may decide what a scan involves by creating a project definition file. The project definition file allows you to login to the Globalyzer server and use defined rule sets for scanning.

To start, open the External Tool Configuration wizard (Run -> External Tools -> External Tools Configurations...). Click Program, then select the New button to create a new tool.

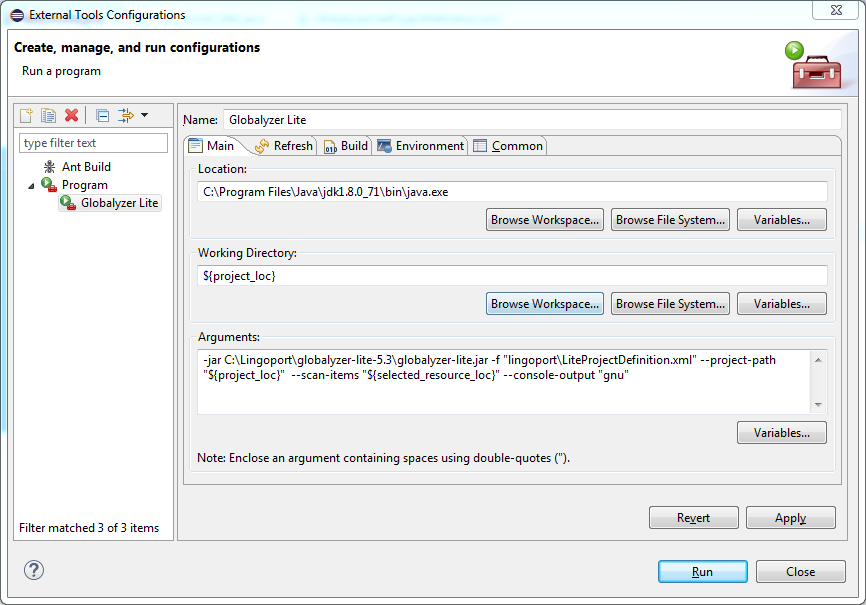

Task for scanning the selected file or directory with Globalyzer Lite in Eclipse

  • Name: GlobalyzerLite-ScanSelected
  • Location: place the path to Java on your system.
    • Windows: C:\Program Files\Java\a (jre|jdk) version here\bin\java.exe
    • Linux / OSX: /usr/bin/java
      • Or output of `which java`
  • Working Directory: ${project_loc}
  • Arguments: -jar "/Location of Globalyzer Lite on your system/globalyzer-lite-6.8.0/globalyzer-lite.jar" -f lingoport\LiteProjectDefinition.xml --project-path "${project_loc}" --scan-items "${selected_resource_loc}" --console-output gnu
    • Windows: -jar "C:\Lingoport\globalyzer-lite-x.y.z\globalyzer-lite.jar" -f lingoport\LiteProjectDefinition.xml --project-path "${project_loc}" --scan-items "${selected_resource_loc}" --console-output gnu
    • Linux: -jar "/home/username/globalyzer-lite-x.y.z/globalyzer-lite.jar" -f lingoport/LiteProjectDefinition.xml --project-path "${project_loc}" --scan-items "${selected_resource_loc}" --console-output gnu

    • OSX: -jar "/Applications/Lingoport/globalyzer-lite-x.y.z/globalyzer-lite.jar" -f lingoport/LiteProjectDefinition.xml --project-path "${project_loc}" --scan-items "${selected_resource_loc}" --console-output gnu

    • "-f": Name of the Project Definition XML file. It is recommended that the Project Definition file is placed into the project source code base directory.

    • "--project-path": Specifies the path to this project. Optional, but useful if a project definition file is being shared between users. Users may store the project in different locations within their system.

    • "--console-output": Print scan report output to console with specified format.
      • Note: The generated report is parsed to create this output. Currently, only the report styles ScanDetailedXML and ScanDetailedCSV are supported in the Project Definition file.
      • "eclipse-default": Format the report output for Eclipse. This will NOT allow consistent jumping from console output to file locations. This does not require the ClickableConsole plug-in.
      • "gnu": Format the report output so that the output will allow selection of the filename in the console output to go to the file location. ClickableConsole requires this to be set.
    • "${selected_resource_loc}": The absolute path to the resource selected in the Package Explorer.
      • If multiple resources are selected, returns the path to only the first one.
      • Quotes are recommended, as the item path may contain spaces. Any content after a space would otherwise be interpreted as an additional argument.

Running Globalyzer Lite

To run Globalyzer Lite, look for the tool you just created under Run -> External Tools. Or under the Tools button.

Warning: If you have not selected a file or directory in the Package Explorer, the variables used in the external tools may be blank. This will cause unexpected behavior (e.g. no scan item given due to blank ${selected_resource_loc})

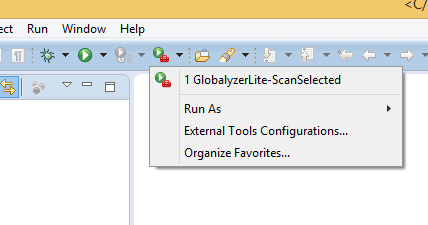

Running Globalyzer Lite in Eclipse

NOTE: You will need to refresh the Package Explorer in order to see the 'globalyzer-lite-reports' folder when it is first created.

After scanning your code with Globalyzer Lite, the reports will be placed in a specified output directory, as defined by the --report-path option. For this tutorial, it will be called "globalyzer-lite-reports". You do not need to create this directory, it will be automatically generated when Globalyzer Lite successfully performs a scan.

Lite-relevant files in Eclipse

Here is some output after a scanning a file:

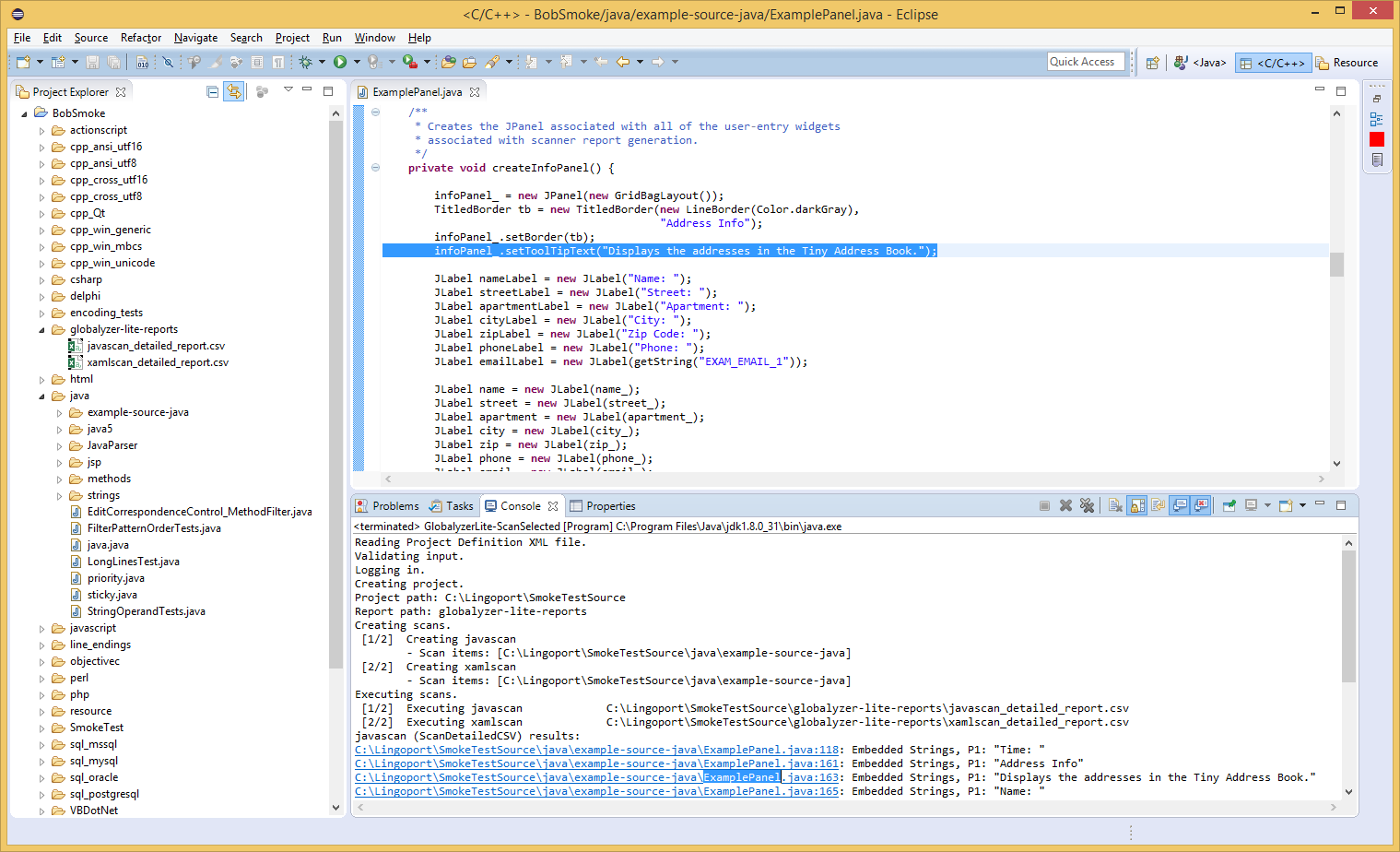

Eclipse Workspace With Lite Integrated

In this example, the directory java/example-source-java was scanned using the GlobalyzerLite-ScanSelected task. The workspace is arranged so that the directory scanned, the scan output, and the scan results (as recorded in javascan_detailed_report.csv) are in the globalyzer-lite-reports directory are all visible. The console links are in the "gnu" format.



IntelliJ IDEA or Android Studio

For a demonstration of using Globalyzer Lite in IntelliJ IDEA see this video .

Prerequisites

Linux

  1. Before setting up Globalyzer Lite in IntelliJ IDEA or Android Studio, be sure that you have Java installed and determine its location.

  2. > java -version
    > which java


  3. Extract the Globalyzer Lite compressed file. We recommend placing it under the home directory on Linux. The extraction will create a globalyzer-lite-x.y.z directory.

  4. > cd <home-directory>
    > unzip globalyzer-lite-x.y.z.zip


  5. Run the installation script. This only needs to be run at installation and not again. The following commands assume that it was extracted into the home directory.

  6. > cd <home-directory>/globalyzer-lite-x.y.z
    > ./lite-setup.sh


  7. Create a Globalyzer Project Definition XML file or use one that has been given to you. For this tutorial, the file's name will be assumed to be LiteProjectDefinition.xml. For instructions on how to create one and more details about the Project Definition file, see creating a project definition file. For more details and examples about Project Definition Files for use with an IDE, see project definition file examples. Place the project definition file in the lingoport directory in source directory of your project.

OSX

  1. Before setting up Globalyzer Lite in IntelliJ IDEA or Android Studio, be sure that you have Java installed and determine its location.

  2. > java -version
    > which java


  3. Extract the Globalyzer Lite compressed file. We recommend extracting into /Applications/Lingoport, creating the directory if it does not already exist. The extraction will create a globalyzer-lite-x.y.z directory. Where x.y.z is the version you are using.

  4. > sudo mkdir -p /Applications/Lingoport
    > sudo chown '0755' /Applications/Lingoport
    > unzip -d /Applications/Lingoport/ globalyzer-lite-x.y.z.zip


  5. Run the installation script. This only needs to be run at installation and not again. The following commands assume that it was extracted into the home directory.

  6. > cd /Applications/Lingoport/globalyzer-lite-x.y.z
    > ./lite-setup.sh


  7. Create a Globalyzer Project Definition XML file or use one that has been given to you. For this tutorial, the file's name will be assumed to be LiteProjectDefinition.xml. For instructions on how to create one and more details about the Project Definition file, see creating a project definition file. For more details and examples about Project Definition Files for use with an IDE, see project definition file examples. Place the project definition file in the lingoport directory in source directory of your project.

Windows

  1. Before setting up Globalyzer Lite in IntelliJ IDEA or Android Studio, be sure that you have Java installed. The default Java install location is C:\Program Files\Java. Browse there and look for an installed jre or jdk. For this example, jdk1.7.0_40 was used. You can also do java -version from a command prompt.

  2. Extract the Globalyzer Lite compressed file. For the purpose of convention, we recommend placing it under C:\Lingoport\ folder on Windows.The compressed file will create a globalyzer-lite-x.y.z folder.

  3. Run the installation script from the command line. Open a command prompt. The following commands assume that the package was extracted into the default directory.

  4. > cd C:\Lingoport\globalyzer-lite-x.y.z\
    > install-lite.bat


  5. Create a Globalyzer Project Definition XML file or use one that has been given to you. For this tutorial, the file's name will be assumed to be LiteProjectDefinition.xml. For instructions on how to create one and more details about the Project Definition file, see creating a project definition file. For more details and examples about Project Definition Files for use with an IDE, see project definition file examples. Place the project definition file in the lingoport directory in source directory of your project.

After scanning your code with Globalyzer Lite, the reports will be placed in a specified output directory, as defined by the --report-path option. For this tutorial, it will be called "globalyzer-lite-reports". You do not need to create this directory, it will be automatically generated when Globalyzer Lite successfully performs a scan.

Lite-relevant files in IntelliJ IDEA or Android Studio

Setup

Globalyzer Lite will be run as an external tool. The External Tools Configuration wizard includes IDEA set variables (macros), such as $ProjectFileDir$, $FilePathRelativeToProjectRoot$ and $FileRelativeDir$, which can be used to automatically specify files or directories for Globalyzer Lite to scan.

To use Globalyzer Lite, an external tool must be created. The tool will scan the item selected in the Project Explorer. If the project is selected, the entire project will be scanned. If a subdirectory is selected, all the directories and files under that folder will be scanned. If a file is selected, only that file will be scanned. If nothing is (actively) selected, IntelliJ will pass empty input for the --scan-items. Unusual results may occur including scanning an open file.

This scan will execute the contents of your project definition file. You may decide what a scan involves by creating a project definition file. The project definition file allows you to login to the Globalyzer server and use predefined rule sets for scanning.

Note that both the project path and scan-items given in the project definition file will be overridden by those specified by the tool. No modifications will be made to the project definition file itself.

To begin, creating the tool open the external tool configuration wizard (File -> Settings...). Select Tools and External Tools. Click the Add (+) button to create a new tool.

This tool is configured to scan whatever file or directory is currently selected in the Solution Explorer. This tool will display the scan results in the output console.

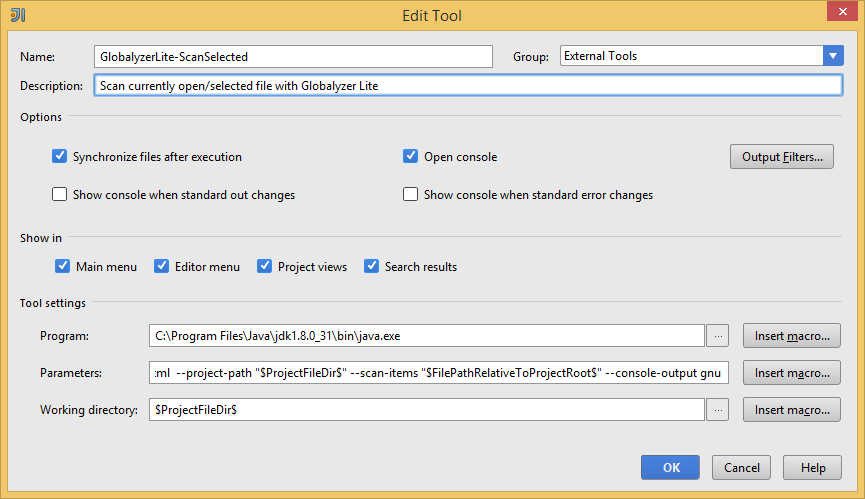

Task for scanning the selected file or directory with Globalyzer Lite in IntelliJ IDEA or Android Studio

  • Name: GlobalyzerLite-ScanSelected
  • Description: Scan the currently open/selected file or folder with Globalyzer Lite
  • Program: place the path to Java on your system.
    • Windows: C:\Program Files\Java\a (jre|jdk) version here\bin\java.exe
    • Linux / OSX: /usr/bin/java
      • Or output of `which java`
  • Parameters: -jar "/Location of Globalyzer Lite on your system/globalyzer-lite-x.y.z/globalyzer-lite.jar" -f lingoport/LiteProjectDefinition.xml --project-path "$ProjectFileDir$" --scan-items "$FilePathRelativeToProjectRoot$" --console-output gnu
    • Windows: -jar "C:\Lingoport\globalyzer-lite-x.y.z\globalyzer-lite.jar" -f lingoport\LiteProjectDefinition.xml --project-path "$ProjectFileDir$" --scan-items "$FilePathRelativeToProjectRoot$" --console-output gnu
    • Linux: -jar "/home/username/globalyzer-lite-x.y.z/globalyzer-lite.jar" -f lingoport/LiteProjectDefinition.xml --project-path "$ProjectFileDir$" --scan-items "$FilePathRelativeToProjectRoot$" --console-output gnu
    • OSX: -jar "/Applications/Lingoport/globalyzer-lite-x.y.z/globalyzer-lite.jar" -f lingoport/LiteProjectDefinition.xml --project-path "$ProjectFileDir$" --scan-items "$FilePathRelativeToProjectRoot$" --console-output gnu
    • "-f": Name of the Project Definition XML file. It is recommended that the Project Definition file is placed into the project source code base directory.

    • "--project-path": Specifies the path to this project. Optional, but useful if a project definition file is being shared between users. Users may store the project in different locations within their system.

    • "$ProjectFileDir$": The path to this solutions project file. Should reflect the base directory of the solution.

    • "--scan-items": Overrides the default settings for which files and directories to scan (as defined in the project definition file).
      • Affects all scans.

    • "$FilePathRelativeToProjectRoot$": The project relative path to the resource that is either open or selected in the project explorer.
      • If multiple resources are selected, returns the path to only the top one.
      • Quotes are recommended, as the path may contain spaces. Any content after a space would otherwise be interpreted as an additional argument.
    • "--console-output": Print scan report output to console with specified format.
      • "gnu": Format report output for IntelliJ IDEs. Will allow jumping from formatted output to locations in the file.
      • Note: The generated report is parsed to create this output. Currently, only the report styles ScanDetailedXML and ScanDetailedCSV in the Project Definition file are supported.
  • Working Directory: $ProjectFileDir$

You must also create an output filter (See button on the middle-right) in order to enable jumping the console report output directly to the relevant file and line.

  • "Output Filters...": Enable jumping directly to issues from console output.

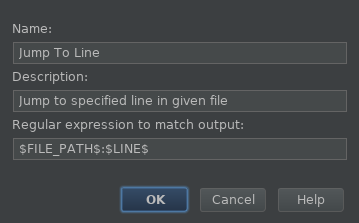

    Setting up output filters to enable jumping to a file
    • "Name:" Jump To Line
    • "Description:" Jump to specified line in given file
    • "Regular expression to match output:" $FILE_PATH$:$LINE$

Running Globalyzer Lite

To run Globalyzer Lite, look for the tool you just created under Tools -> External Tools.

.Click on the tool to run it. Be sure that you have finished configuring a project definition file.

Warning: If you do not have a file within your project either open or selected, the macro $FilePathRelativeToProjectRoot$ will be blank. Your tools will not know where to look to find any of the files within your project.

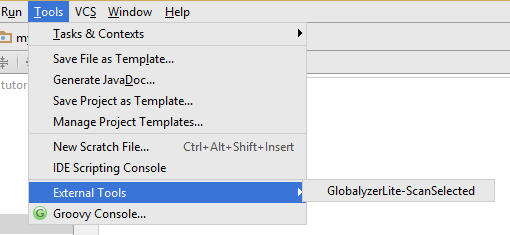

Running Globalyzer Lite in IntelliJ IDEA or Android Studio



Here is some output after a scanning a file:

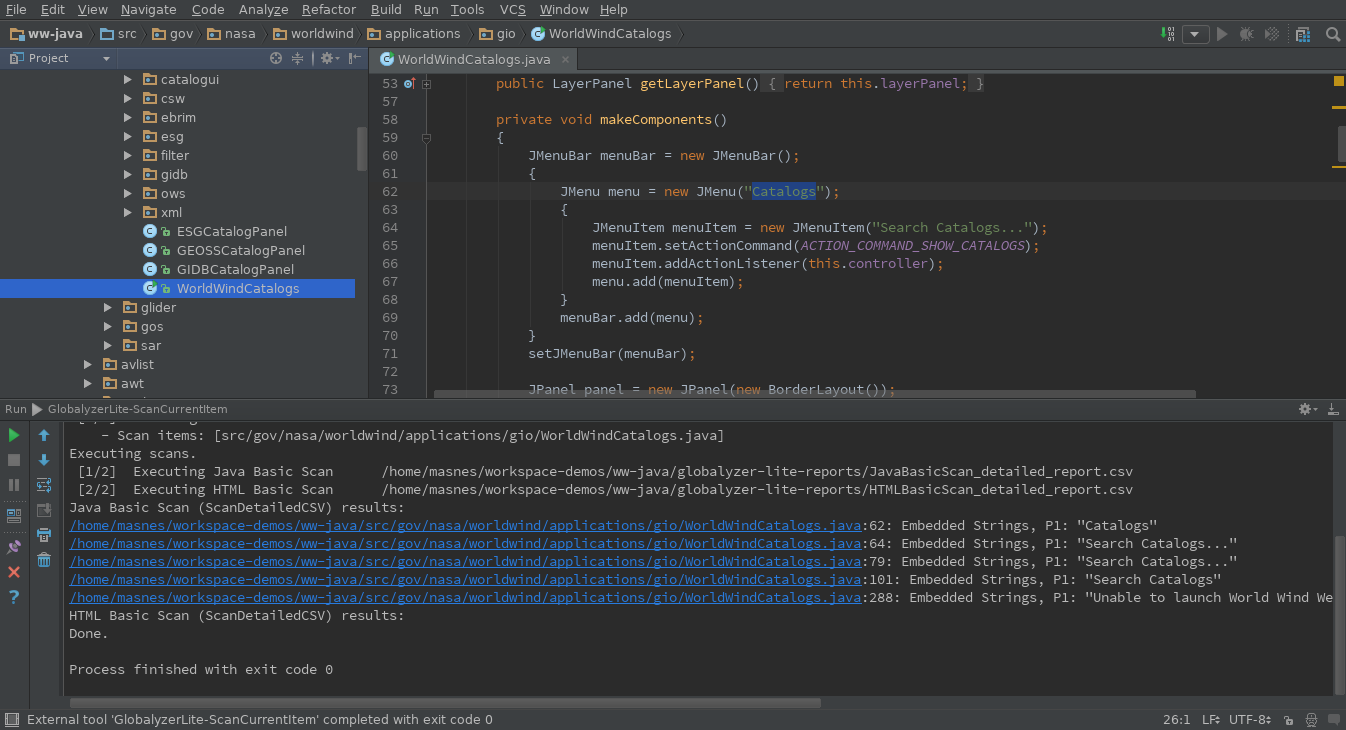

IntelliJ IDEA / Android Studio Workspace With Lite Integrated

In this example, the file "WorldWindCatalogs.java" was scanned using the GlobalyzerLite-ScanSelected task. The workspace is arranged so that the file scanned, the scan output, and the scan results (as recorded in JavaBasicScan_detailed_report.csv) are all visible.
