Java Tutorial

Preparing to Externalize Strings

In this section, you will learn how to configure the code-fixing features of Globalyzer by editing the Project Properties. Using Globalyzer, there are several types of fixes and changes you can apply to your source code:

  • externalization
  • direct editing
  • and several types of commenting.

The string externalization feature lets you automatically place hard-coded text in a resource file and replace the text with an appropriate retrieval call. Externalization is provided for a long list of programming languages, with a wide range of resource file types for each. The default for Java is .properties, although po and xml are also supported for the language. If you require a different type of resource file that is not currently available, please send an email to support@lingoport.com. As we continue to develop and expand Globalyzer's capabilities, we want to make sure we are providing the features you want.

Globalyzer also allows direct editing of source code in the Editor view. The Source Files editor is helpful for cases in which Globalyzer detects a problem, such as a locale-sensitive method call, and you choose to alter the code immediately from within Globalyzer. On the other hand, if you would prefer to refactor the code in a more familiar source editor, Globalyzer automates the process of inserting customizable ToDo comments next to issues in the source code. This allows you to easily search for the issues later, using the editor of your choice.

Lastly, Globalyzer automates the process of inserting Ignore comments into the source. There are two types of ignore comments: a single line ignore comment causes the Globalyzer scanner to ignore the line that follows the Ignore Next Line comment; and a multi-line ignore comment which causes the scanner to ignore lines between the Start Ignore and the End Ignore comments. The comment features provide a simple way to refine subsequent scans by ignoring lines that you do not wish to be analyzed.

  1. Select the Scan=>Manage Scans... menu item from the menu bar; the Manage Globalyzer Scan dialog pops up. Select the Java Tutorial Scan and click Modify. Click Next twice for the configuration to externalize hard-coded strings.

  2. Set the following values in the Globalyzer String Externalization view:

    Resource File Type: properties
    Resource File Frequency: Project
    Retrieval Method: getString("[key]")
    Use/Generate Static Retrieval Class: Checked
    Retrieval Class Package: com.lingoport.demo.java.utils (Note: Using the Browse... button to fill in Retrieval Class Name will fill in this section automatically.)
    Retrieval Class Name: I18nUtils (Note: use the Browse... button and begin typing for auto-completion of the class name.)
    String Key Next ID: 1
    Share Strings: Checked
    Externalized String Comment: GLOBALYZER_EXTERNALIZED_TEXT:
    Resource File Path: [path to source files]/com/lingoport/demo/java/resources/exampleResources.properties (Note: You can browse to the directory for easier setting.)
    Resource File Encoding: UTF-8

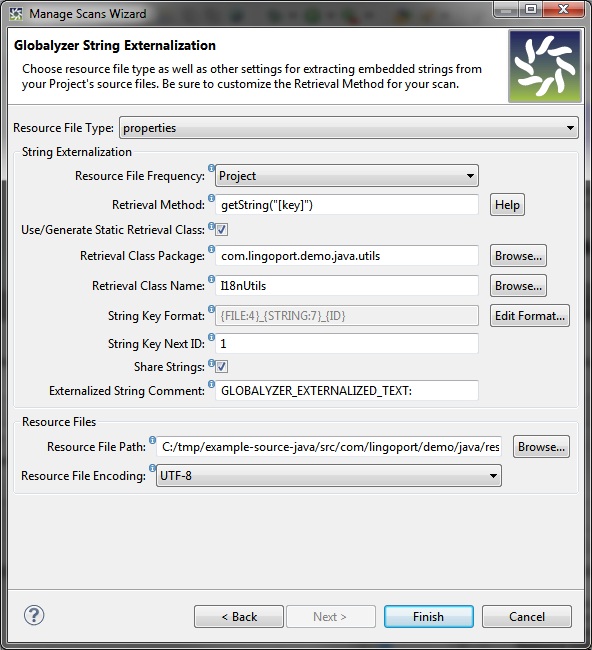

    Your settings should look like this:

    Let's look at what these settings mean.

    First, note that the term externalize refers to replacing embedded text in source files with a method call to retrieve the text from a resource file. Globalyzer's String Externalization feature automatically extracts embedded display text, such as button names or error messages, from the source and places the text in a resource file with a unique key that identifies it.

    The Resource File Type is set to properties. This tells Globalyzer to place externalized strings in a Java-style resource file. Other options are available for other programming languages, and new ones are added as Globalyzer continues being developed. If you need a specific resource type and you don't see it in the list, please contact us at support@lingoport.com.

    The Resource File Frequency is set to Project. This means that only one resource file will be created for this project. The other option, Source File, specifies that a unique resource file will be created for each source file that contains externalized display text.

    The Retrieval Method specifies a fully qualified method name that will be used to retrieve text from the resource file. The actual name of this method is generally specific to each system architecture. In this case, the method getString("[key]") is the com.lingoport.demo.java.utils.I18nUtils method name used in the tutorial example code.

    If your framework does not have a resource management class (like the I18n class in our simple example), using the same settings, Globalyzer will generate the class. In this case, the first time Globalyzer externalizes an embedded string, it will create a default class for string retrieval in the base source directory.

    Either way, a package import statement will be inserted at the top of each source file when a string is first externalized from the file.

    In the source files, the following pattern is repeated to retrieve strings from your exampleResources.properties file:

    I18nUtils.getString("ID_TO_RESOURCE")

    Note that the I18nUtils class is just a simple example with a locale set to French in France. For your own projects, the code will vary depending on your particular system architecture; the locale object might be created from information in a configuration file, a database, or through some other mechanism.

    As noted previously, each string that is externalized is assigned a unique identifying key. To ensure uniqueness, the current String Key Next ID is appended to the identifying key and then incremented.

    By selecting Share Strings , Globalyzer reuses the same key/value pair for identical embedded strings. In other words, only one key/value would be generated for each Cancel string in the application.

    The Externalized String Comment field shows the default comment used when you externalize strings. For example, if you checked the Automatically Insert Externalized String Comment option in the Globalyzer Preferences dialog, and then externalized the string Hello World!, the following would be inserted in your source code, above the line of code where the embedded string was found:

       /*GLOBALYZER_EXTERNALIZED_TEXT: Hello World!*/

    By default, the Resource File Path is set to create the properties file in the Project's base path. The properties filename is based on the Project name, for instance here JavaTutorial.properties. In this section, you modified the path so the properties file goes under the resources directory with a different name.

    Because the Resource File Frequency is set to Project, this resource file will be used to store the key/value pairs for the entire Project.

    Finally, the Resource File Encoding should be set to UTF-8, as this is the preferred encoding of properties files. Globalyzer will assume all your resource files of this type are the same encoding, although it will ensure that if a resource file has BOM bytes (bytes at the beginning of the file that indicate encoding), it will access the file properly, regardless the Project's Resource File Encoding setting. To see the encoding of an individual file, right-click on the file in the Project Explorer view and select Properties.


    Note: In a Java application, you will run the utility native2ascii on your UTF-8 encoded properties files, which will Unicode-encode each non-ASCII character.

  3. Click on Finish to save this setting if you changed anything. Finally, click Close to close the Manage Scan dialog.

In the next section, you will use Globalyzer to automatically externalize the embedded strings from the source files.
