.NET Tutorial

Preparing to Fix Your Code

In this lesson, you will learn how to configure the code-fixing features of Globalyzer by editing the Project Properties. Using Globalyzer, there are several types of fixes and changes you can apply to your source code. These include externalization, direct editing, and several types of commenting.

The string externalization feature lets you automatically place hardcoded text in a resource file and replace the text with an appropriate retrieval call. Externalization is provided for a long list of programming languages, with a wide range of resource file types for each. The language-supported resource file types for C# are .resx, properties and xml. If you require a different type of resource file that is not currently available, please send an email to support@lingoport.com. As we continue to develop and expand Globalyzer's capabilities, we want to make sure we are providing the features you want.

  1. Click Scan=>Manage Scans in the Menu Bar. The Manage Scans dialog appears.

  2. Select HTML Scan then click Modify. This should bring up the Manage Scans Wizard.

  3. Click next twice. You should now be at the Globalyzer String Externalization page.

  4. Set the following values:

    Resource File Type: resx

    Resource File Frequency: Project

    Retrieval Method: <%=GetString("[key]")%>

    String Key Next ID: 1

    Share Strings: Checked

    Externalized String Comment: GLOBALYZER_EXTERNALIZED_TEXT:

    Resource File Path: [Simple Project Path]/MyResources.resx (Note: You can browse to the directory for easier setting.)

    Resource File Encoding: UTF-8

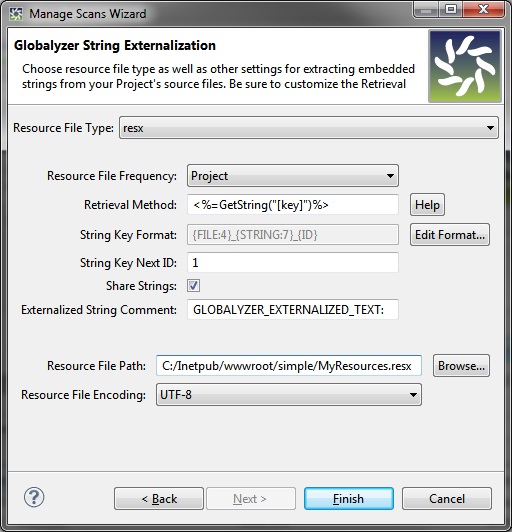

    Check to ensure that the settings now look like this:

    Let's look at what these settings mean.

    First, note that the term externalize refers to replacing embedded text in source files with a method call to retrieve the text from a resource file. Globalyzer's String Externalization feature automatically extracts embedded display text, such as button names or error messages, from the source and places the text in a resource file with a unique key that identifies it.

    The Resource File Type is set to resx. This tells Globalyzer to place externalized strings in a .NET resx-style XML file.

    The Resource File Frequency is set to Project. This means that only one resource file will be created for this Globalyzer project. The other option, Source File, specifies that a unique resource file will be created for each source file from which strings are externalized. Because you are going to create the default .resx file that will be built into the main .NET Web assembly, you can create a single file that will store strings for all of the source files in this project.

    The Retrieval Method specifies a fully qualified method name that will be used to retrieve text from the compiled resource dll at runtime. The actual name of this method is generally specific to each system architecture. In our code, you are going to make sure each class has a member method called GetString. In other words, all of the code you alter will need to have access to a method called GetString that can retrieve the externalized text.

    In the .NET source files, you will alter every code-behind class generated by Visual Studio.NET for each .aspx file to extend a class called StringGetter.cs. That class defines a GetString method that in turn calls the GetString method in ResourceManager. ResourceManager is the .NET class responsible for - as the name suggests - managing Resources. Bear in mind that in a real-world application that is pulling in translated text, the UICulture would need to be set dynamically for each user to ensure that the correctly-translated resources are displayed in the GUI.

    As noted previously, each string that is externalized is assigned a unique identifying key. To ensure uniqueness, the current String Key Next ID is prepended to the identifying key and then incremented.

    Notice also that we include the server-side tags with the method signature. This is because any HTML strings we externalize will be replaced with this entire Retrieval Method text, including the server-side tags.

    By setting Share Strings to Yes, you tell Globalyzer to reuse the same key/value pair for identical embedded strings. In other words, only one key/value would be generated for each Cancel string in the application.

    The Resource File Path is set to create the file MyResources.resx in the directory where you put the source code (assuming the default path was left unchanged). Again, because the Resource File Frequency is set to Project, this resource file will be used to store the key/value pairs for the entire project.


    Note: If you leave the Resource File Path with just a directory name, and your Resource File Frequency is set to Project, Globalyzer will create a .resx file using the name of the Project. For example, for the Simple Project, Globalyzer will create the resource file Simple.resx.

    Finally, the Resource File Encoding should be set to UTF-8, as this is the preferred encoding of resx files. Globalyzer will assume all your resource files of this type are the same encoding, although it will ensure that if a resource file has BOM bytes (bytes at the beginning of the file that indicate encoding), it will access the file properly, regardless the Project's Resource File Encoding setting. To see the encoding of an individual file, right-click on the file in the Project Explorer view and select Properties.

  5. Click Finish to save the settings then close the Manage Globalyzer Scans window.

In the next lesson, you will use Globalyzer to automatically externalize the embedded strings in the source files.
